What I Tell Drivers About Building an Off-Road Ready Jeep Gladiator
## What Lift Kit Height Is Optimal for Running 35-Inch or 37-Inch Tires on a Gladiator?
Running 35-inch tires on a Jeep Gladiator requires a 2-inch to 2.5-inch suspension lift to prevent wheel well rubbing during full axle articulation, while 37-inch tires require a 3.5-inch suspension lift alongside re-gearing considerations to maintain proper tire clearance and drivability.
When truck buyers ask me how to upgrade their rig for serious trail riding, tire size is usually the first topic on the table. A 2-inch to 2.5-inch lift setup gives a Gladiator Rubicon or Mojave enough clearance to stuff 35-inch tires into the fenders without trimming the body or destroying the inner fender liners when the sway bar is disconnected. For daily driving around the rural farm approaches near Onsted, a 2.5-inch lift with 35-inch rubber preserves comfortable factory steering geometry and driveshaft angles while yielding roughly 2 inches of pure ground clearance under the axle differentials.
Moving up to 37-inch tires changes the mechanical equation significantly. Achieving proper clearance for 37-inch tires requires a 3.5-inch suspension lift, aftermarket adjustable control arms to correct caster angles, and heavier-duty track bars to center the axles. Fitting 37-inch tires onto the standard 4.10 rear axle ratio found on factory off-road trims will make the 8-speed automatic transmission hunt for gears on the highway. To restore responsive throttle performance and low-speed crawl control, re-gearing the front and rear axles to a 4.88 or 5.13 gear ratio is highly recommended. If you want to see these suspension setups in person, visit our showroom in Clinton or give our sales team a quick call to chat through your build goals.
Table of Contents
- How Capable Is the Jeep Gladiator Off-Road Compared to Midsize Rivals Like the Toyota Tacoma?
- What Is the Horsepower, Torque, and Towing Capacity of the 3.6L Pentastar V6 Engine?
- Is the Jeep Gladiator Really Off-Road Ready From the Factory, and Which Trims Offer the Highest Clearance?
- Does Adding an Aftermarket Lift Kit Void the Jeep Factory Warranty?
- What Extra Maintenance and Equipment Verification Does Frequent Off-Roading Require?
- What Local Trails and Off-Road Parks Can You Take a Gladiator To?
How Capable Is the Jeep Gladiator Off-Road Compared to Midsize Rivals Like the Toyota Tacoma?
The Jeep Gladiator offers strong axle articulation and obstacle crawling compared to midsize rivals like the Toyota Tacoma, largely due to its segment-exclusive solid front axle design and electronic sway-bar disconnect.
While independent front suspension setups on trucks like the Toyota Tacoma or Chevrolet Colorado offer smooth high-speed gravel performance, they lack the raw suspension travel required for technical rock crawling. The Gladiator Rubicon features standard Dana 44 solid front and rear axles paired with an electronic front sway-bar disconnect. Pressing the dash-mounted button releases the sway bar, allowing the front axle to flex significantly further than a independent front suspension setup can manage. This extra articulation keeps all four tires planted firmly on uneven terrain, maximizing traction where other midsize pickups lift tires off the ground.
Gearing is another area where the Gladiator separates itself from the competition. Equipped with the Rock-Trac 4x4 system featuring a 4:1 low-range transfer case, a manual or automatic Gladiator Rubicon achieves a best-in-class crawl ratio of up to 77.2:1 crawl ratio. By comparison, a standard Toyota Tacoma TRD Off-Road delivers a low-range crawl ratio in the 36:1 to 42:1 range depending on the transmission. This low gearing allows the Gladiator to crawl up steep inclines at a controlled walking pace without constant brake feathering. For drivers who want to explore electrified trail performance, you can also look into Jeep hybrid technology options across our SUV lineup or check out our new Jeep Gladiator showroom lineup to compare equipment specs.
What Is the Horsepower, Torque, and Towing Capacity of the 3.6L Pentastar V6 Engine?
The 3.6-liter Pentastar V6 engine produces 285 horsepower at 6,400 rpm and 260 lb-ft of torque at 4,400 rpm, enabling a maximum gas towing capacity of up to 7,700 pounds and a payload capacity up to 1,725 pounds when properly equipped.
Every 2025 and 2026 Gladiator trim utilizes this proven naturally aspirated engine, paired with a standard 8-speed automatic transmission. Torque arrives at 4,400 rpm, providing steady pulling power across the rev band whether you are merging onto the highway or dragging a heavy trailer up a muddy boat launch. Matching this powertrain to a long 137-inch wheelbase gives the truck excellent stability under load compared to shorter midsize SUVs.
When spec'd with the Max Trailer Tow Package, the Sport and Sport S trims hit the headline 7,700 pounds tow rating and 1,725 pounds payload capacity. Dedicated off-road models like the Rubicon carry a listed tow rating of 7,000 pounds and a payload of 1,100 pounds, reflecting the softer coil springs designed for off-road suspension flex. This output handles camper trailers or boat hauling out to Michigan Center Reservoir with ease. If your garage needs a secondary commuter alongside a trail truck, you can explore our pre-owned Jeep Cherokee inventory for reliable daily transport options.
Is the Jeep Gladiator Really Off-Road Ready From the Factory, and Which Trims Offer the Highest Clearance?
Straight from the factory floor, the Jeep Gladiator Rubicon and Mojave trims offer genuine trail readiness with up to 11.6 inches of ground clearance, standard 33-inch all-terrain tires, and heavy-duty steel skid plates.
The factory trim ladder determines what kind of terrain the truck excels at right off the lot:
- Gladiator Mojave: Engineered for high-speed desert and sand performance with 11.6 inches of ground clearance, FOX 2.5-inch internal bypass shocks featuring external reservoirs, and industry-exclusive hydraulic front jounce bumpers to prevent hard bottoming out over harsh bumps.
- Gladiator Rubicon: Optimized for low-speed technical rock crawling with 11.1 inches of ground clearance, Tru-Lok electronic locking differentials front and rear, an electronic front sway-bar disconnect, and heavy-duty steel rock rails.

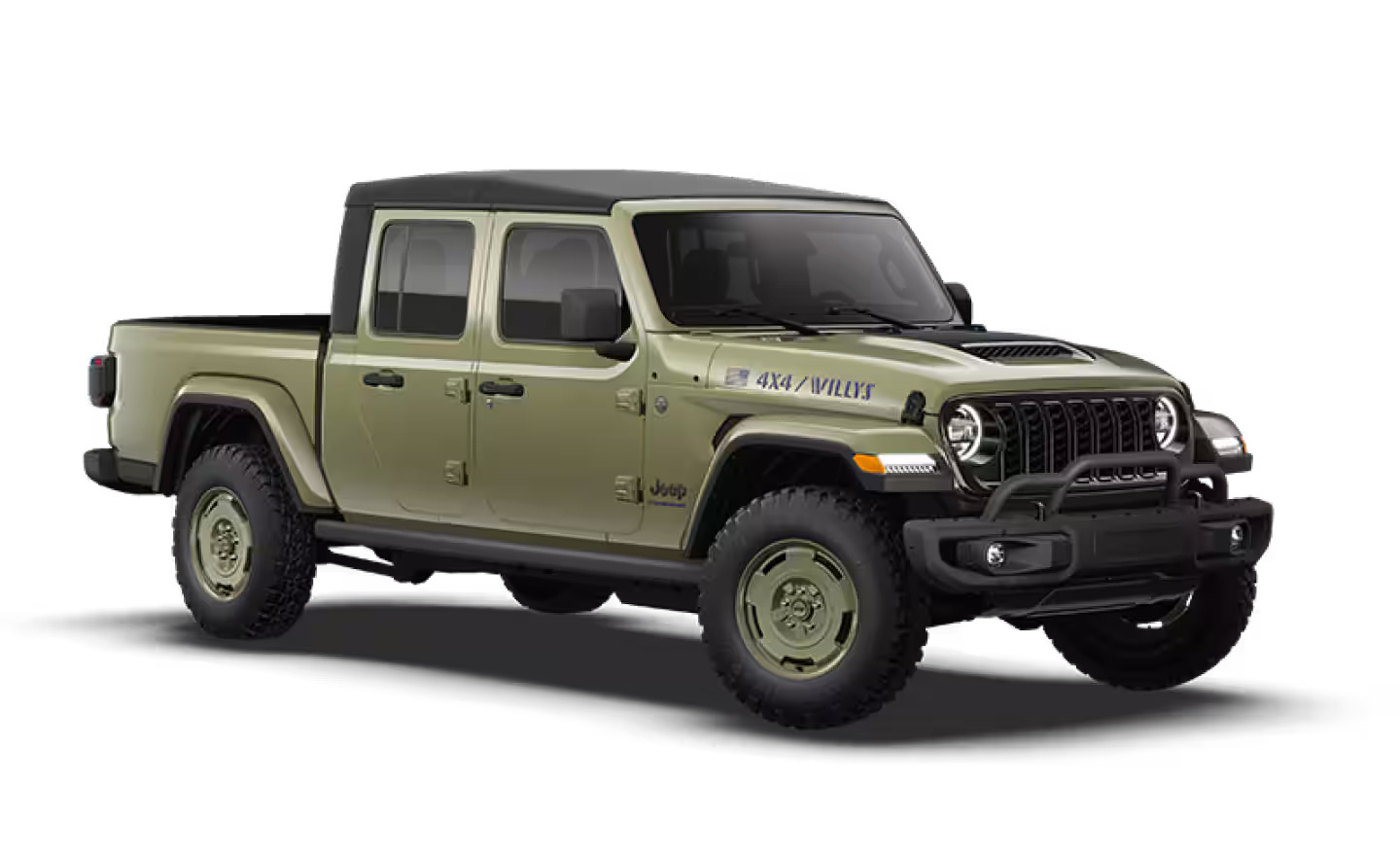

- Gladiator Willys: Offers an accessible middle ground with standard rear locking differential, rock rails, and 33-inch mud-terrain tires.
Every 4x4 Gladiator features a factory water fording depth rating of 31.5 inches, backed by 6 heavy-duty steel skid plates protecting the fuel tank, transfer case, and automatic transmission oil pan. If you are cross-shopping smaller daily drivers for family members, browse new Jeep Compass models, or if you are ready to upgrade your current ride, you can value your trade-in vehicle online in just a few minutes.
Does Adding an Aftermarket Lift Kit Void the Jeep Factory Warranty?
Installing an aftermarket lift kit does not automatically void your Jeep factory warranty under the federal Magnuson-Moss Warranty Act, which requires the manufacturer to prove that a specific aftermarket modification directly caused a component failure before denying coverage.
If you install a 3-inch suspension lift and a power window motor fails later on, your 3-year/36,000-mile basic warranty still covers the window motor because the suspension modification had no impact on the door electronics. However, if an improperly engineered aftermarket lift alters driveshaft angles and leads to premature failure of a CV joint or transfer case seal, the dealership and manufacturer may deny warranty claims for those specific damaged driveline parts.
To maintain complete protection, many buyers choose factory-engineered Mopar lift suspension packages installed right at the dealership. Mopar kits are calibrated specifically for Gladiator steering linkages and stability control systems, preserving the 5-year/60,000-mile powertrain warranty. While researching build budgets, you can view our certified pre-owned vehicle selection or apply for financing online to structure your purchase and accessory upgrades into a clear payment plan.
What Extra Maintenance and Equipment Verification Does Frequent Off-Roading Require?
Frequent off-roading requires shorter fluid change intervals for differentials and transfer cases, routine inspection of steering linkages and ball joints, and verifying factory armor like skid plates and tow hooks before hitting challenging trails.
Driving through deep mud, water, and fine sand subjects mechanical components to far more stress than highway commuting. Key post-trail maintenance practices include:
- Undercarriage Washing: Thoroughly flush mud and road salt from skid plates, frame rails, and brake calipers to prevent corrosion, especially during harsh Michigan winters.
- Differential Fluid Checks: Inspect front and rear axle gear oil for milkiness after deep water crossings, which indicates water contamination past the axle seals.
- Hardware Torquing: Check track bar bolts, control arm mounting hardware, and sway-bar end links every few trail trips to ensure nothing has vibrated loose under heavy articulation.
- Air Filter Servicing: Clean or replace the engine air filter frequently when driving in dusty convoy environments.
Before heading out on a trip, verify that all recovery points—including the heavy-duty forged front and rear tow hooks—are securely torqued and free of hairline cracks. You can schedule a service appointment online with our factory-trained technicians, or order genuine Mopar parts and accessories to keep your vehicle operating at peak performance.
What Local Trails and Off-Road Parks Can You Take a Gladiator To?
Michigan offers several public trail systems and state-managed ORV parks where a stock or modified Jeep Gladiator can test its transfer case, lockers, and ground clearance on dirt, sand, and rock.
Local enthusiasts frequently visit the Holly Oaks ORV Park or Mound Oak trail networks, which offer designated scrambles, mud pits, and steep rock climbs designed for 4x4 vehicles. For those willing to drive further west, the Silver Lake State Park Sand Dunes provide miles of open sand driving where the high-speed valving of the Gladiator Mojave FOX shocks shines. Airing down tire pressure to around 15 PSI before entering sand or rock trails dramatically improves traction and ride comfort.
Preparing your pickup with proper recovery gear—including a kinetic tow strap, tree saver, shackle mounts, and a tire inflator—ensures you are ready for any scenario on the trail. If you are ready to build a truck tailored to your exact color, trim, and axle specifications, find our dealership location, reach us directly at (517) 456-6555, or custom factory order a new Jeep built straight from the factory for your next weekend adventure.
